Heated insert cell for Ga & In – ABI

Details

  • Large loading capacity from 85cc to 3000cc
  • Higher stability than any other effusion cell
  • Lowest growth defect density compared to any other effusion cell
  • Wafer growth uniformities improved by factor of up to 3
  • Reduced flux transient
  • Reusable insert

Presentation

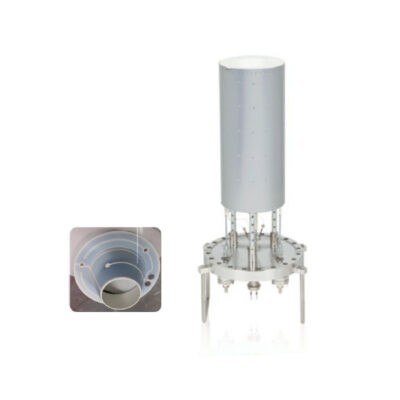

The Riber ABI effusion cell is designed to produce stable purity molecular beams.

The ABI cell relies on the concept of a cylindrical crucible with a self-heated beam-shaper insert on top. This unique design enables extended campaign durations – 4 times higher loading capacity than conventional conical crucibles and large ingot loading (reduced source material oxidation and increased material quality).

It is specifically adapted for the growth of epitaxial layers of medium vapor pressure materials.

ABI cells perform with a very high reproducibility, with excellent run-to-run stability and long-term flux stability – less than 1% variation over 40 h

ABI give improved epilayer quality compared to standard conical cell, with best in class uniformity – better than 1.5% – and low defects density. The flux transient is also reduced to less than 2%.

The insert has been carefully engineered to improve the flux stability over the load consumption, while maintaining excellent uniformities of thickness and composition. The design also enables to get the same evaporation surface over time. The insert is reusable.

It is heated on the conical section and on the lip in order to prevent condensation and droplet formation or cross contamination, thus reducing “oval defects” observed in GaAs growth with other technology.

Flexible operating conditions are obtained with independent temperature control of the insert filament.

Layout

Technical information

Cell characteristics ABI 85 ABI 500 ABI 800 ABI 1000 ABI 3000
Filament One One One One One
Heating zone Two Two Two Two Two
Heating filament Ta wire Ta flat heater Ta flat heater Ta flat heater Ta flat heater
Heated insert PG resistive track encapsulated in PBN PG resistive track encapsulated in PBN PG resistive track encapsulated in PBN PG resistive track encapsulated in PBN PG resistive track encapsulated in PBN
Insert Thermocouple 1 x C-type 2 x C-type 2 x C-type 1 x C-type 1 x C-type
Crucible thermocouple 1 x C-type 2 x C-type 2 x C-type 1 x C-type 1 x C-type
Crucible PBN PBN PBN PBN PBN
Mounting flange CF63 CF100 CF100 CF150 CF200
Typical operating temperature (Ga @ 1 µm/h) – insert / crucible* Insert: 1000°C / Crucible : 950°C Insert: 1050°C / Crucible : 950 °C Insert: 1050°C / Crucible : 950 °C Insert: 1050°C / Crucible : 950 °C Insert: 1000°C / Crucible : 950 °C
Max. outgassing temp. (empty cell) – insert / crucible* Refer to QCS Refer to QCS Refer to QCS Refer to QCS Refer to QCS
Temperature stability < ± 0.5 °C < ± 0.5 °C < ± 0.5 °C < ± 0.5 °C < ± 0.5 °C
Power consumption crucible (Ga 1 µm/h) 140 W 300 W 500 W 600 W 1100 W
Power consumption  for insert (Ga 1 µm/h) 230 W 400 W 1000 W 1600 W 2800 W
Max. Current in Insert Refer to QCS Refer to QCS Refer to QCS Refer to QCS Refer to QCS
Crucible – Power supply 60 V – 12.5 A GEN 150 V-16 A 1U 1P GEN 150 V-10 A 1U 1P Alim GEN100 V-24 A 1U 1P GEN 400 V – 25 A 3U 3P
Insert – Power supply 60 V – 12.5 A GEN 80 V-30 A 1U 1P GEN 80 V-30 A 1U 1P Alim GEN100 V-24 A 1U 1P GEN 200 V – 25 A 2U 3P
Power output connector 1 x SPC-4 1 x SPC-4 1 x SPC-4 4 x RTMI 2 x SPC-2+
Thermocouple connector 2 x HMPW-C-N 4 x HMPW-C-N 4 x HMPW-C-N 2 x HMPW-C-M 2 x HMPW-C-N
Integrated water cooling* On request On request On request On request Flange cooling
Water connection* SS-4M0-6 SS-4M0-6 Contact Riber SS-4M0-6 SS-10M0-6-8M
Power Cable 1 x Cord Cell BK-SW-Ø8-8-23-SPC-2
1 x Cord Cell BK-WTL-Ø8-8-23-SPC-2
1 x Cord Cell BK-SW-WTL-Ø 8-11-23-SPC-4 1 x Cord Cell BK-SW-WTL-Ø 8-11-23-SPC-4 1 x Cord Cell BK-WTL-Ø 8-11-55-WTL-Ø 6 2 x Cord BK-WTL-Ø 8-46 A-SPC2-CF35
Thermocouple cable 2 x Cord cell BK-HMPW-C-F-11-C 2 x Cord cell BK-HMPW-C-F-11-C 2 x Cord cell BK-HMPW-C-F-11-C 2 x Cord cellBK-HMPW-C-F-11-C 2 x Cord Th BK-HMPW-C-F-11

*For some versions and systems adaptations, water cooling may be necessary

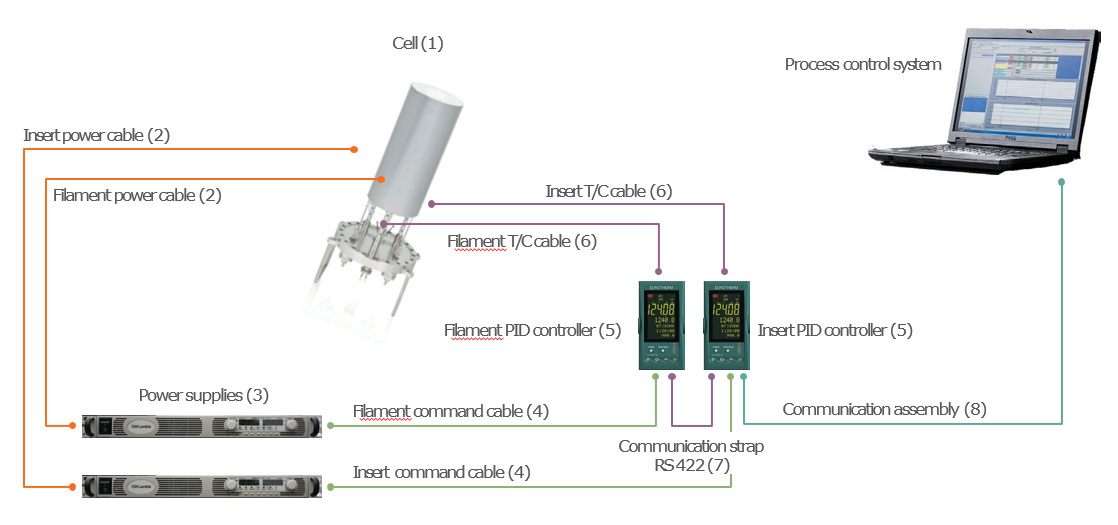

Component interfacing
