All Metal Valves

MBE Accessories & Services

Technical document
PDF

309 Ko

Information request

Details

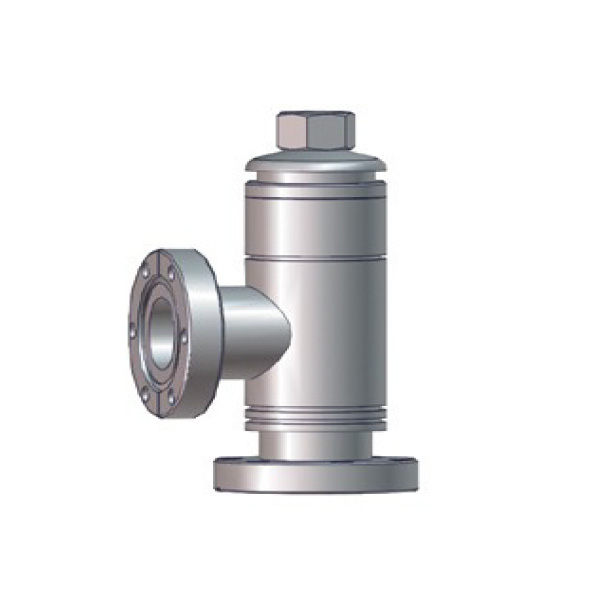

Right angle all metal valves
2 sizes types CF16 & CF35
Used for MBE chamber purging and roughing
Very high leak-tightness

Presentation

Riber all metal valves VME series are perfectly suited to stand bakeout operations, while keeping excellent leak tightness, fully compatible with UHV requirements.

Installed on the growth chamber pumping well and on trapping cold fingers, these valves are usually used to purge the chamber with nitrogen when a maintenance opening is needed (VME16) and as a roughing interface (VME35), to generate primary vacuum via a mobile pumping group when the UHV chamber is pumped down.

Technical information

Characteristics	VME 16	VME 35
ND nominal diameter (mm)	16	40
Connecting flanges	2 x 16 CF Rotatable Knife-edge	2 x 40 CF Rotatable Knife-edge
Conductance in open position (l/s)	5	50
