Bakeout Mantles
Details
- Uniform heating up to 200°C
- Controlled heating temperature and timing
- Minimum space to store
- Meet clean room requirements
- Simple to assemble/remove
- Decrease heat load on laboratory air conditioning
- Lightweight and easy to carry/to handle
Presentation

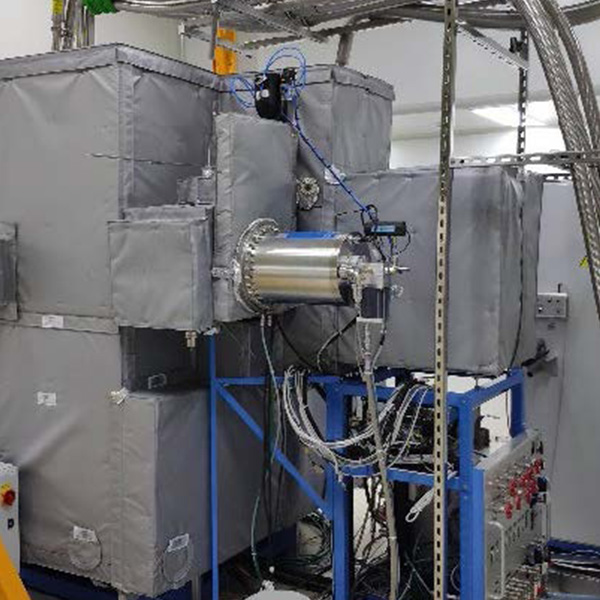

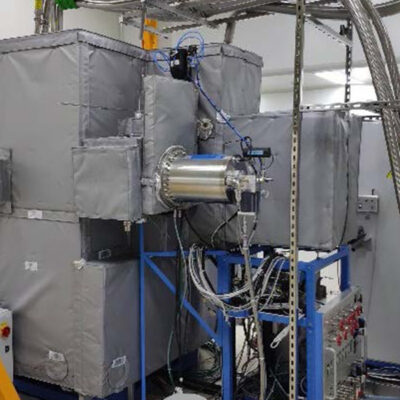

The Riber Bakeout set up includes complete coverage of the growth chamber made of flexible mantles for R&D and Production systems. Both Bakeout enclosures are made of fireproof cleanroom-compatible material.
For all Riber systems, heating is performed with heating stations incl. fans and/or heating tapes in order to achieve very high uniform heating of the chamber up to 200°C.
The flexible mantles are fitted together with Velcro fasteners. The main mantle part can be left permanently on the growth chamber.
Bakeout for transfer system is made of heating tapes which completely cover the equipment, heated up to 150°C and covered with Velcro mantles as well when applicable.

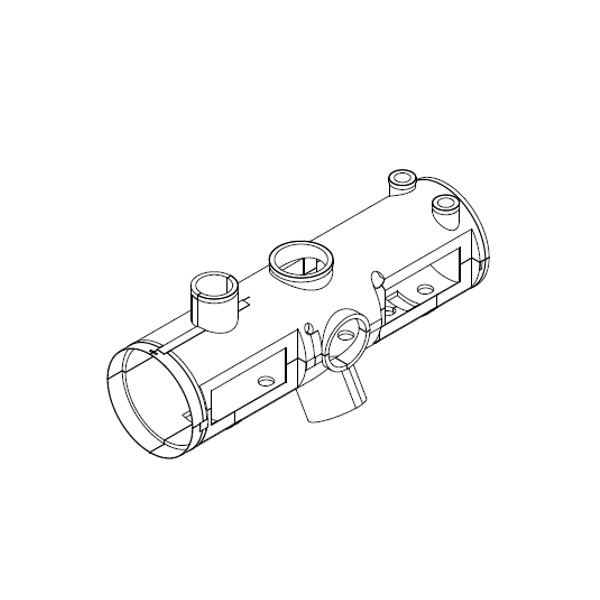

RIBER - Example of MBE 6000 shuttle bakeout mantle

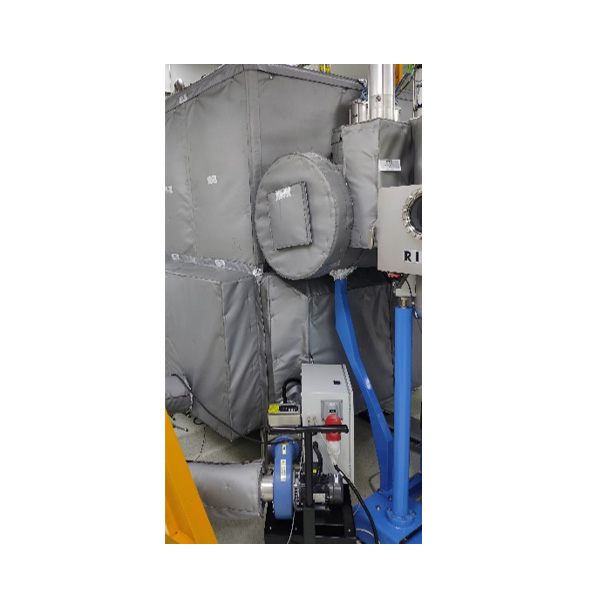

RIBER - Bakeout heating stationTechnical information
| Characteristics | Bayard Alpert gauge |
|---|---|
| Bakeout type | Heating station withfans or heating tapes + flexible mantles-Velcro fasteners |
| Max achievable internal temperature | 200°C Growth chamber / 150°C other chambers & transfer |
| Temperature tolerance | +/-20°C |
| Max external bakeout temperature | 50°C |
