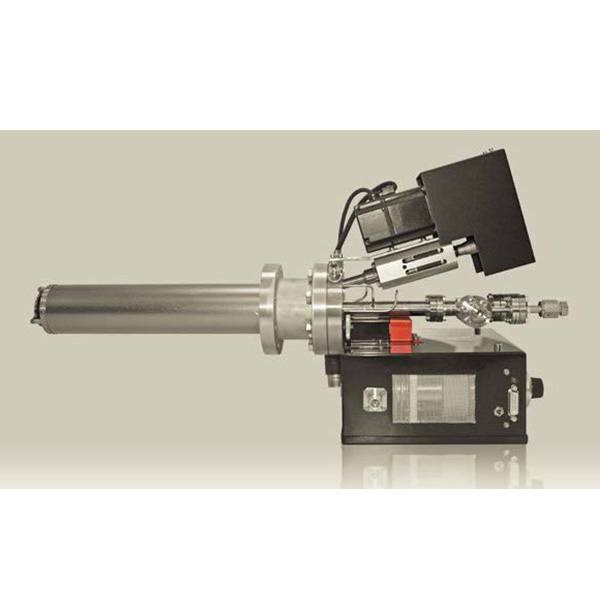

VRF-X 600 – Valved RF Plasma Source
Nitrogen / Oxygen
- Patented design providing rapid changes from 0 to 10% in diluted nitride
- Reproducible production of reactive species
- Very high uniformity achieved
- Ideal design for dilute nitride applications
- Ready to use with no plasma stabilization time
- No changing of end pieces required
- Totally eliminates ions and minimizes layer defects
Compared to standard RF Plasma sources, this new source offers an ease of control similar to the Valved Cracker cell compared to a standard effusion cell. While the valve is closed, the source can retain the same working conditions and is ready to use without needing to wait for the start-up and stabilization of plasma as required with the standard RF source. The unique, patented design of the Riber Valved RF Plasma source makes it a revolutionary atom or radical source providing rapid and reproducible reactive nitrogen species flow modulation and unsurpassed nitrogen concentration uniformity over large wafers. When high uniformity is required over large platens (for production systems), the Valved RF cell offers advantages concerning the working pressure in the chamber compared to other solutions using large diameter RF cells. The molecular nitrogen flow amounts to a few sccm with the Riber Valved RF source, versus several tens of sccm with a standard RF source featuring a large end plate diaphragm. This leads to a lower operating pressure in the system, allowing for better process conditions.. Dual gas injection panel is available in case gas mixing is requested.

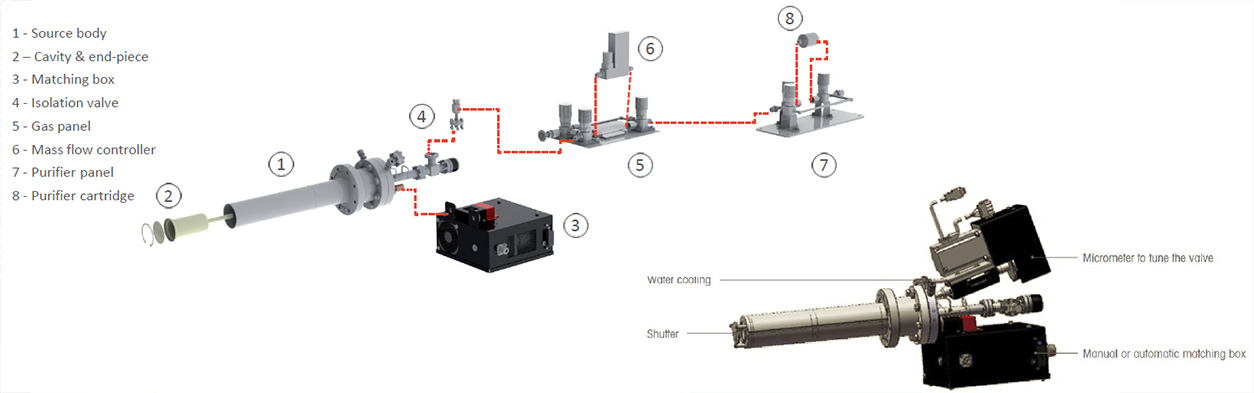

The RF plasma source operates by mean of an electrical field produced by the inductive coupling of the RF coil surrounding the cavity. A RF (13.56 MHz) generator delivers power to the discharge cavity space. To maximize power transfer to the plasma, a matching network is used to match the 50 Ohm impedance of the generator to the purely 50 Ohm impedance of the cavity load. Plasma in the cavity space produces atoms by dissociation of the molecular species. Atoms flow along with the non-dissociated molecules into the vacuum environment through an array of small holes at the front disk of the cavity («end–plate»).The hole arrangement is also called the «pattern». This pattern depends on application.
A large flux will require a large number of holes compared to an application where only a very small flux is required. Atoms generally have a very low recombination coefficient, so even those undergoing several wall collisions will ultimately contribute to the atom beam flux.
The main characteristic of the VRF-N lies in the use of a valve to control the nitrogen flow. The valve allows for the variation, adjustment and optimization of nitrogen flow without needing to change the diffuser model, in contrast to standard RF plasma sources.
The electron sheet, covering the inside cavity walls, the hole sizes and shape are designed to minimize ions and electrons released from the cavity (Current lower than 10 nA / cm2).
Gas breakdown will occur above a certain pressure in the cavity. This pressure depends upon the gas ionization potential. As a result, and for a given cavity pattern, the flow rate of molecular gas will vary from gas to gas.
Plasma conditions is actively monitored via optical emission diagnostics to ensure flux stability and composition.
|Characteristics||VRF-N 600||VRF-O 600|
|Cavity type||Single piece cavity|
|Mounting flange||CF 63 min – adaptations available|

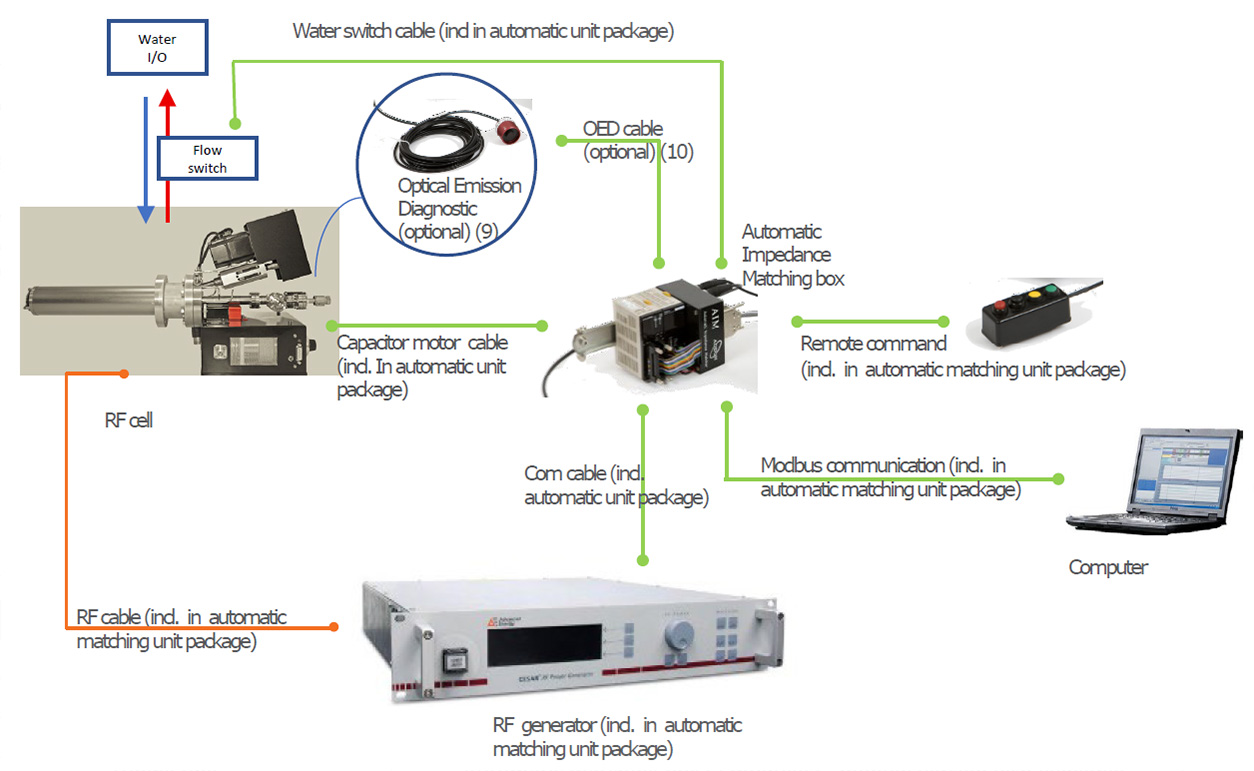

|Tuning unit||Automatic matching box (2 modules) – manual version also available|
|Power supply||600 W|
|Plasma observation viewport||CF 16|
|Flux valve||Integrated, micrometer motorized control|
|Gas inlet||DN CF 16 / VCR ¼’’|
|RF coil water cooling||Included – Ø6mm Swagelok connection
|RF tuning unit cooling||Air|
|Water security switch||Included|
|Options||Plasma optical emission detection|
|Gas panel + mass flow controller|
|Gas purifier panel|
